hot air smd rework station

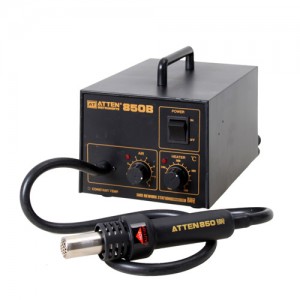

CHIPTRONIKS 850 SMD Hot Air Gun Soldering Station

CHIPTRONIKS  850 Soldering Stationc omes with adjustable temperature from 100°C to 480°C. It is SMD Hot Air Gun designed. There is an external calibration for accurate temperature. The detachable handles is easy to replace. ESD safe and powerful design, stability resistant ground. PID controlld closed loop of sensor, rapid heating, precise and stable temperature, suitable for soldering and de-soldering surface mounted. Such as QFPM PLCC, SOP, BGA etc. Hot air station and directly cooling system.

For Sales Enquiry Call 09971004998/011-47592046

CHIPTRONIKS  850 SMD Hot Air Gun Soldering Station Features:

  • ESD safe and powerful design.
  • It is new vortex design for exit, decreasing anomaly temperature.
  • Setting digital LED display function.
  • Temperature increases quickly, reach set temperature within 2 or 3 seconds.
  • Soft rotating blow, even heating, better protection for machine components.
  • Soft blow, even temperature.
  • Steady components which are uneasy to be deformed.
  • Comes with standby Saving power function
  • Static elimination design, prevent PCB board damage due to static or electric leakage.
  • Adopts imported heating wire, for a long life to sue.
  • Light portable handheld, suitable for mounting and reworking SMD component by hand for a long time.

CHIPTRONIKS 850 SMD Hot Air Gun Soldering Station Specification:

Power Supply AC 220V (50Hz)
Power Consumption 500W
Output Voltage 24V AC
Temperature Range 100 °C-480 °C
Ground Resistance <2 Mohm
Heater Alloy Wire
Electrical wire 1.2m
Size 224 x 126 x 110mm
